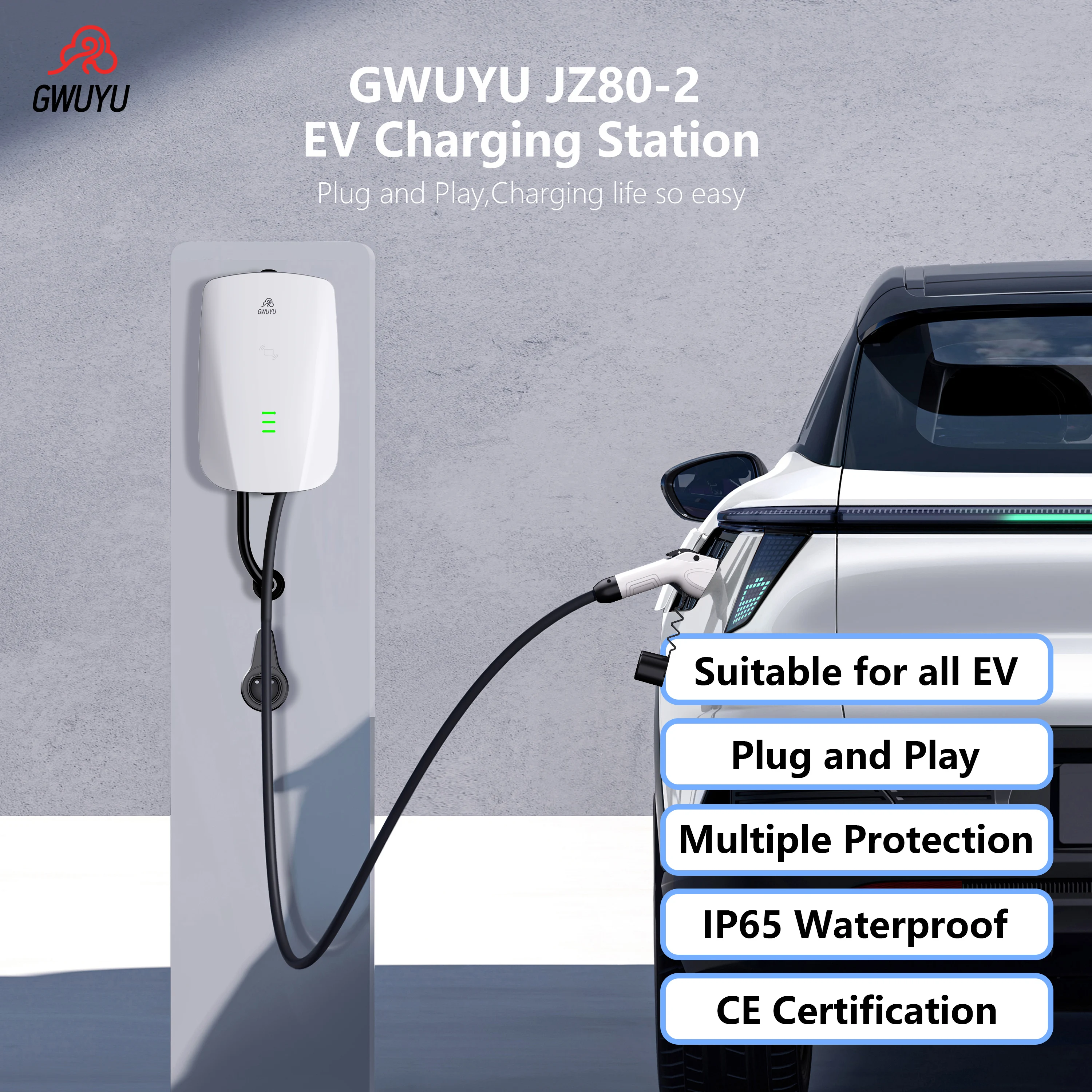

Descriptions:

1. Well-designed: The special socket effectively prevents dust from entering the EV charger interface. 5M cable is sturdy and durable, suitable for use in various parking lots or family garages. It can be hung on the holder after use, which is flexible and convenient. When fully charged, the device will automatically power off. In case of emergency use, press the reset button to turn off the device.

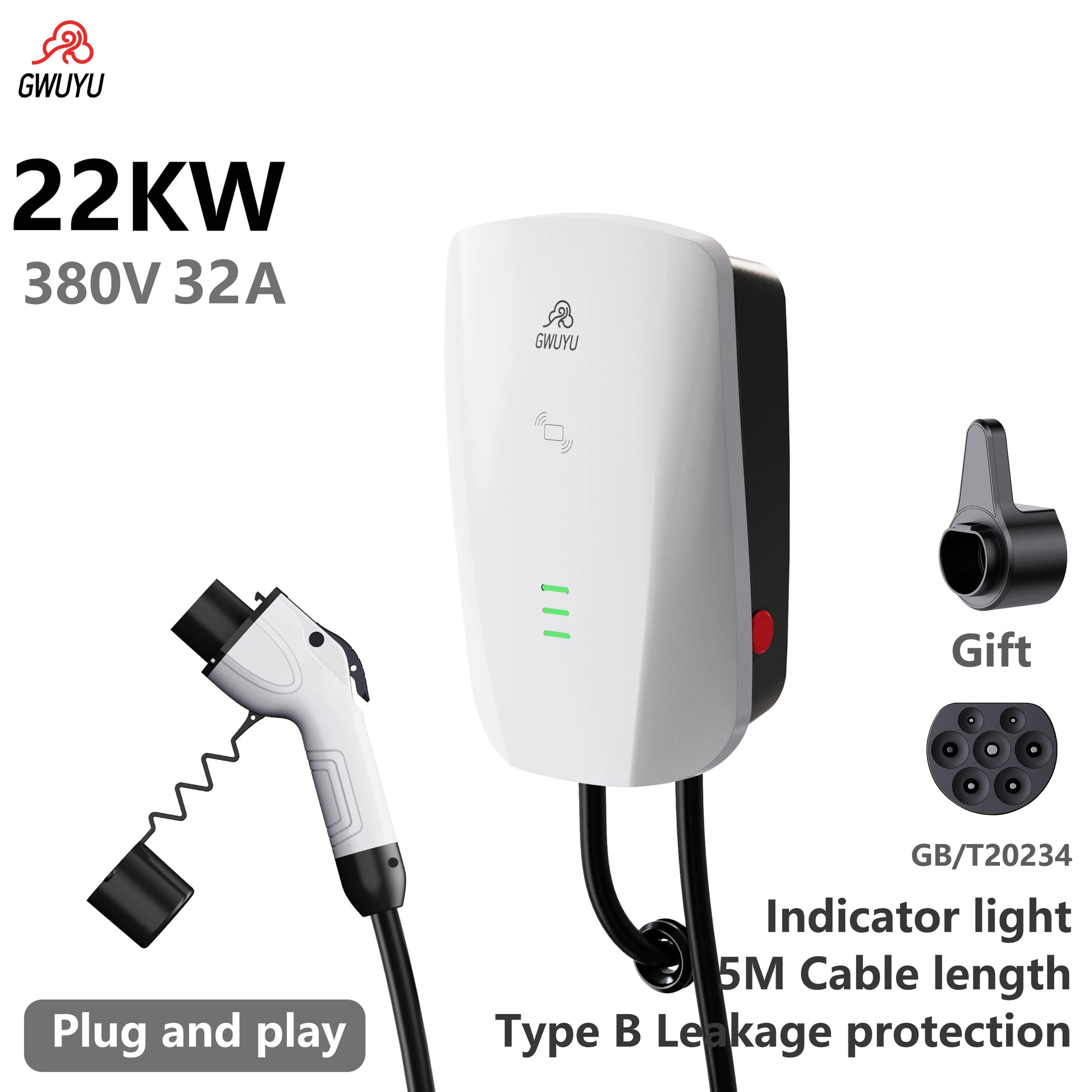

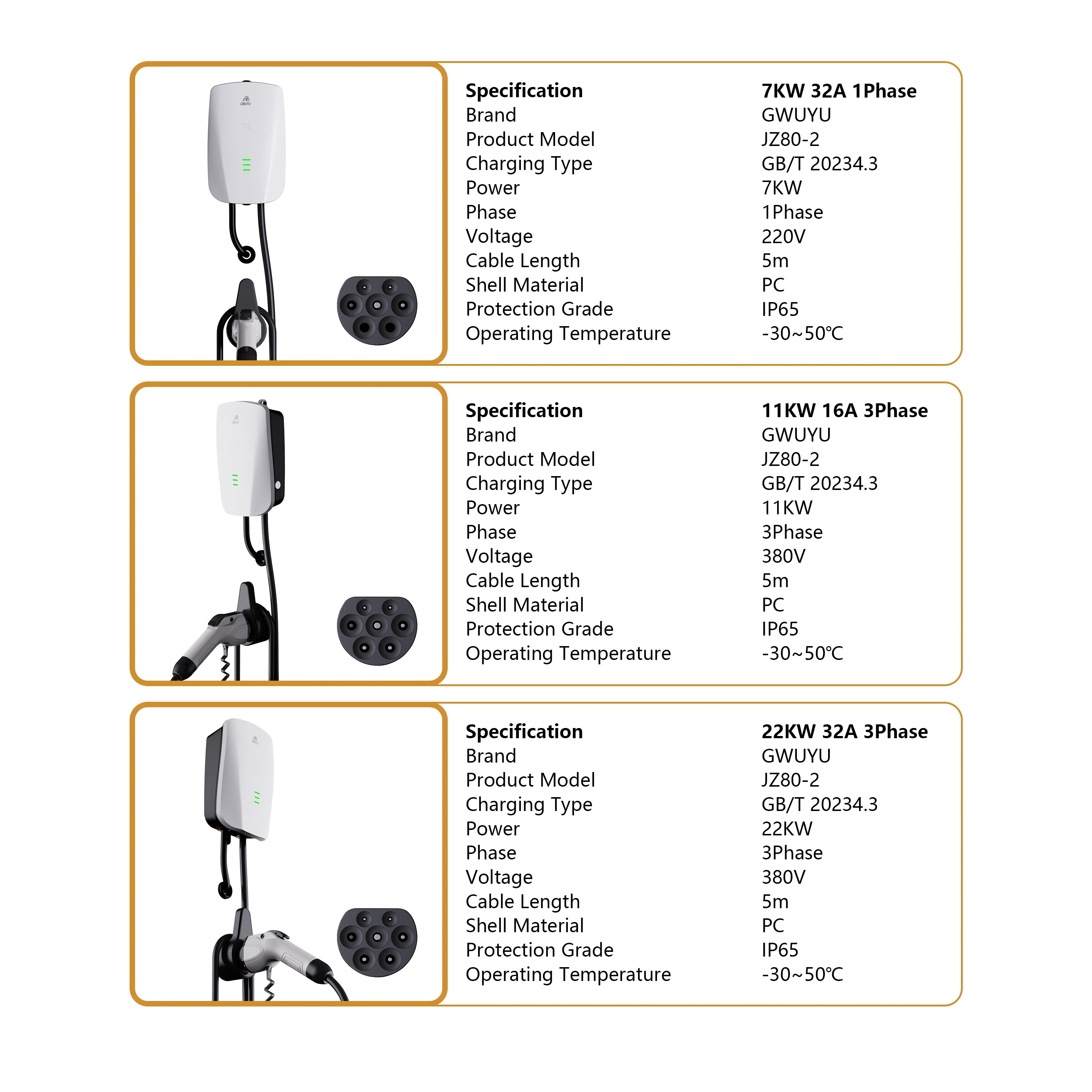

2. Stable and Fast Charging: 32A 1P 16A/32A 3P AC charging stations support indoor and outdoor installation and use. It is suitable for all GBT standard, the station uses aluminum alloy body and alloy plate to be stronger. Button start mode and easy installation.

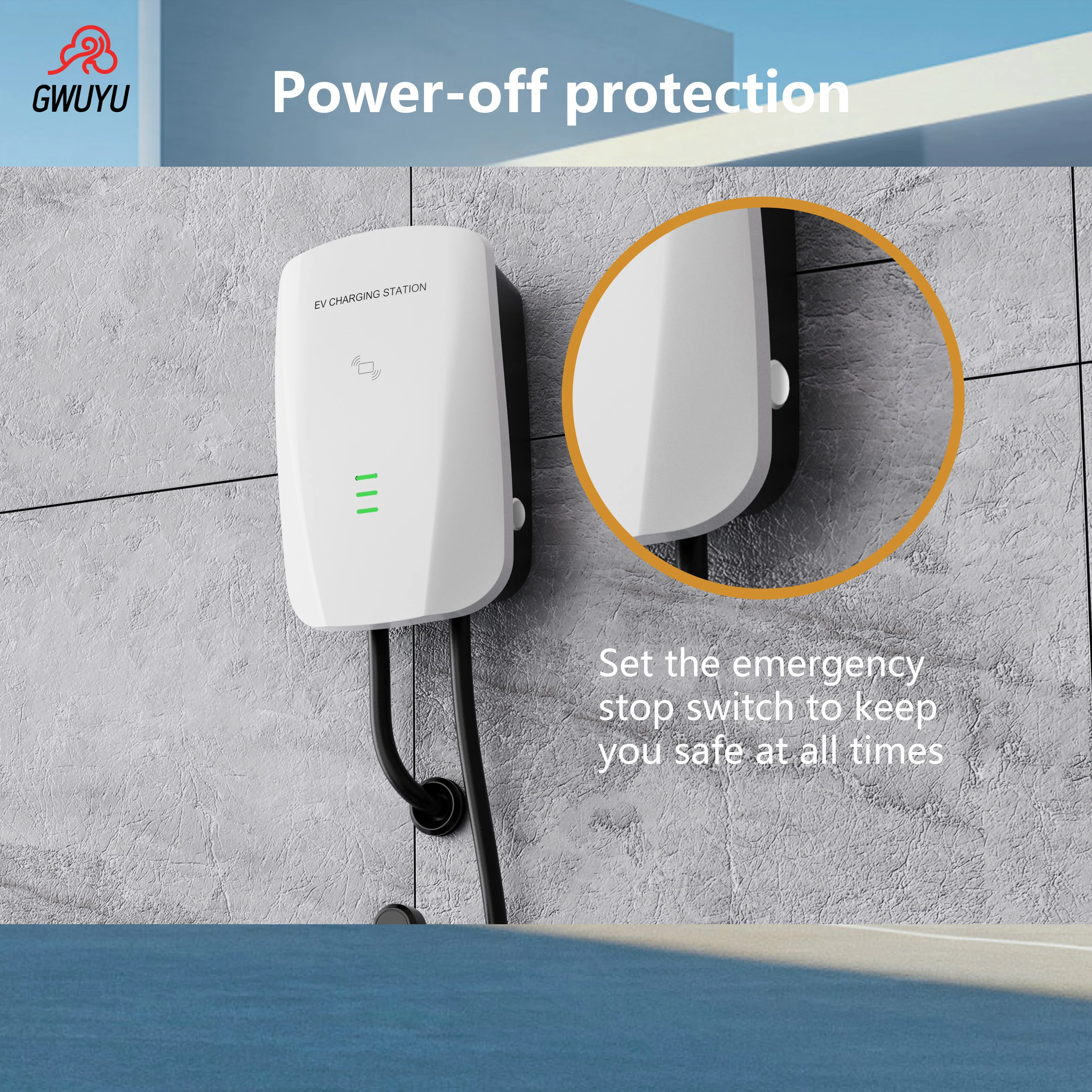

Notes for Button Functions:

1, The Button is Emergency Button, if you have problems to connect the internet, please press the Emergency Button and rotate 90 cw in order to start the internet.

2, If there is an error message”Err:Reset”on screen after you installed the wall-box, please press and rotate the Red Button to restart the wallbox, it will work.

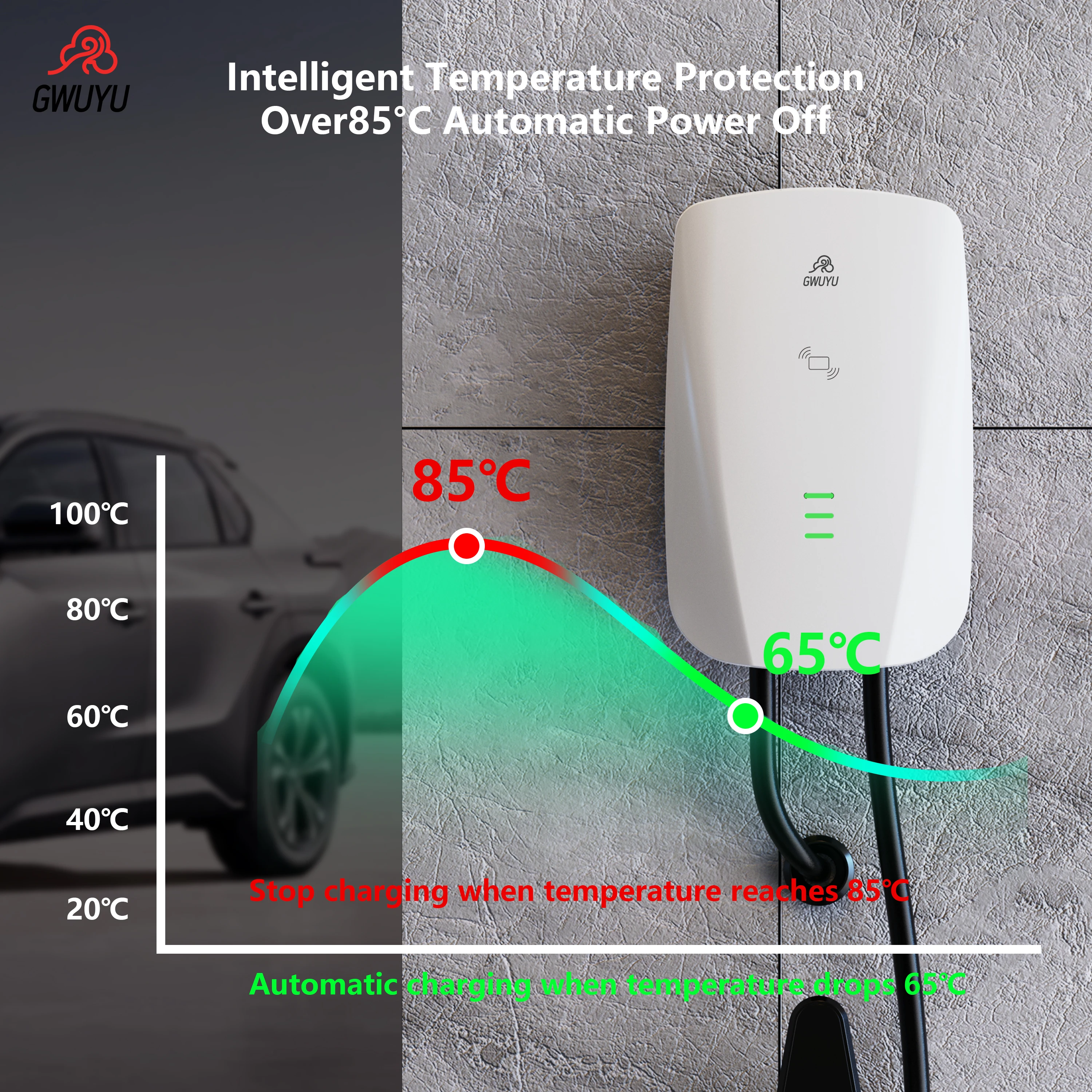

Intelligent Temperature Protection, Over85°C Automatic Power Off

Control Box Function:

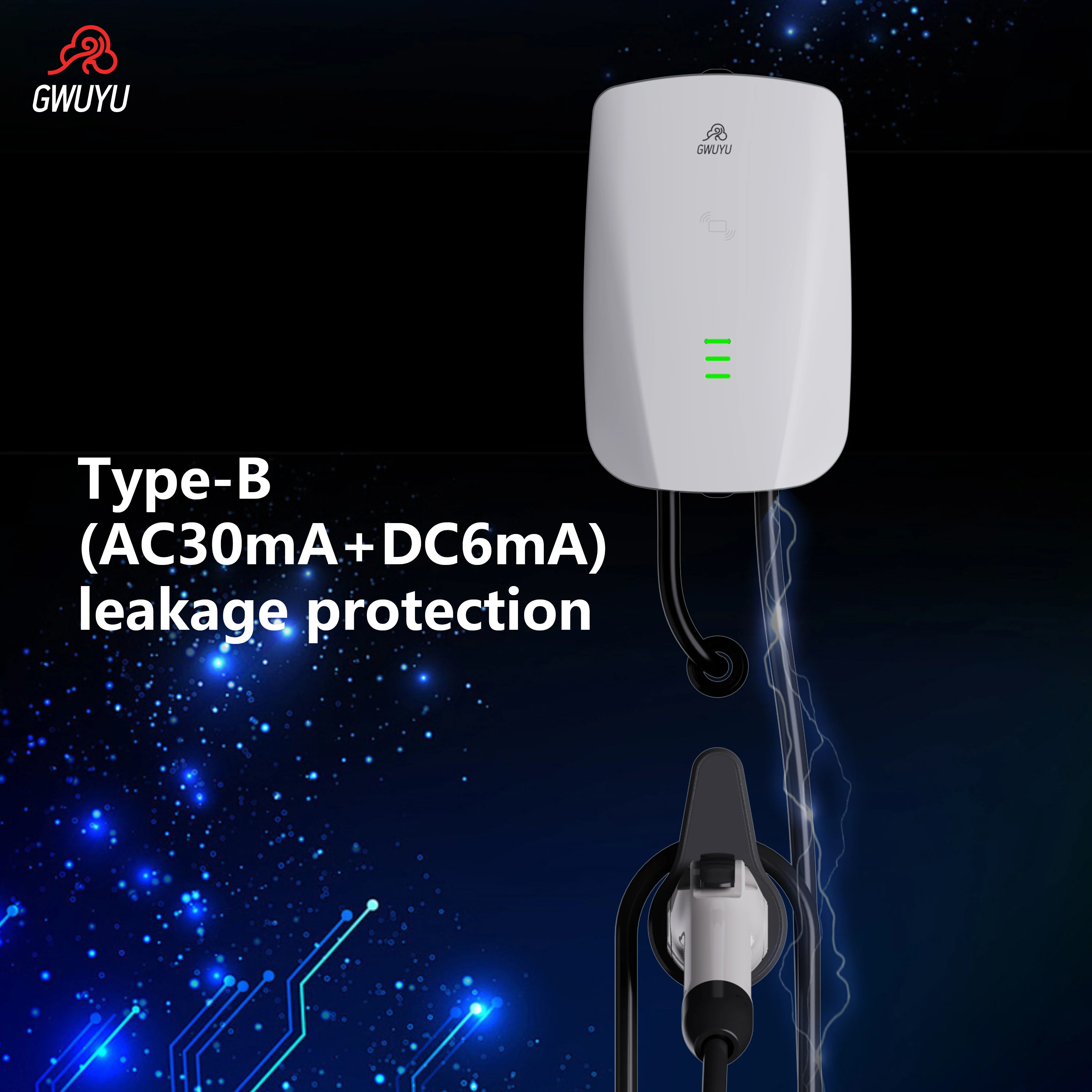

1.Leakage protection (restart recover).

2.Over voltage under-voltage protection (self-checking recover).

3.Over current protection.

4.Overheat protection.

5.Ground protection.

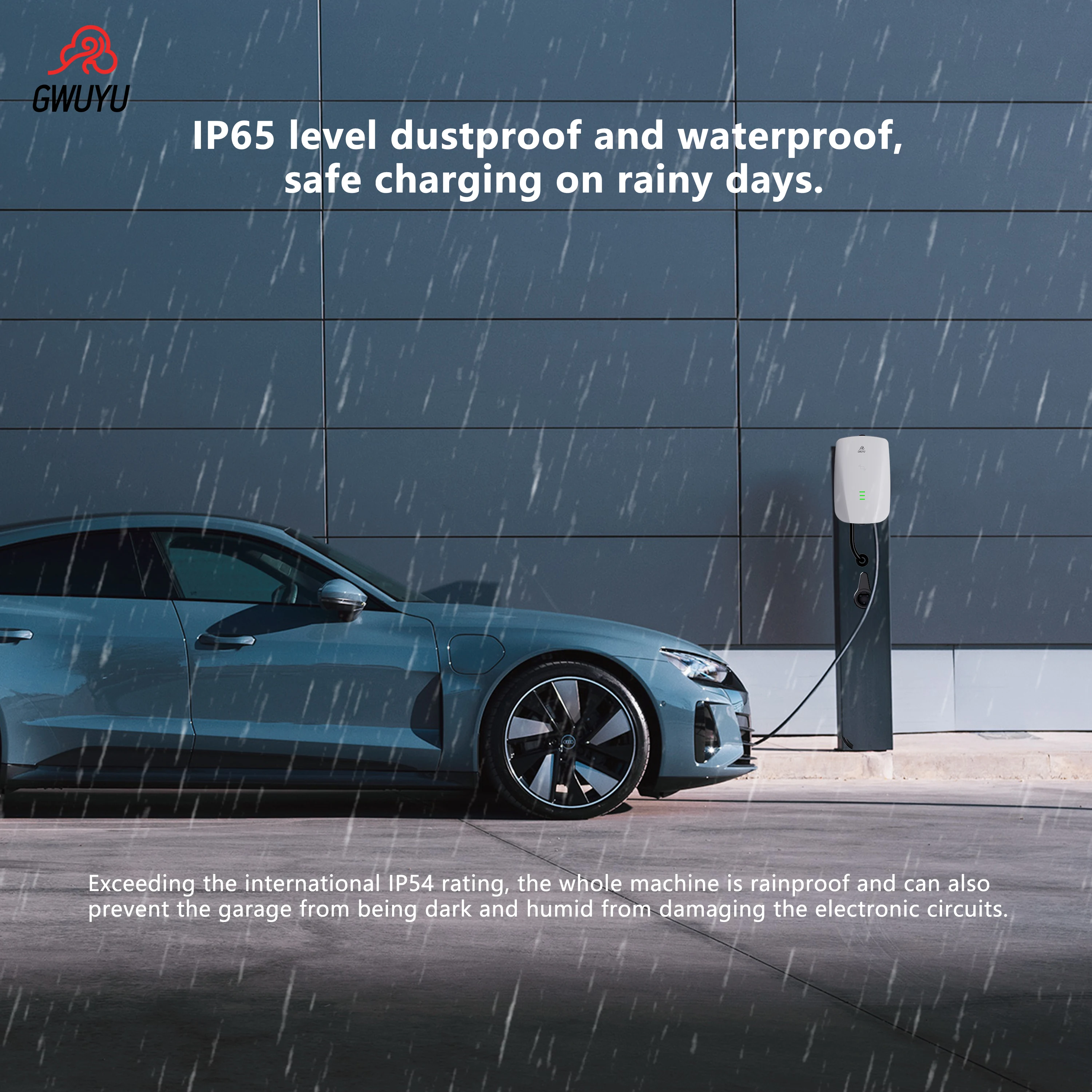

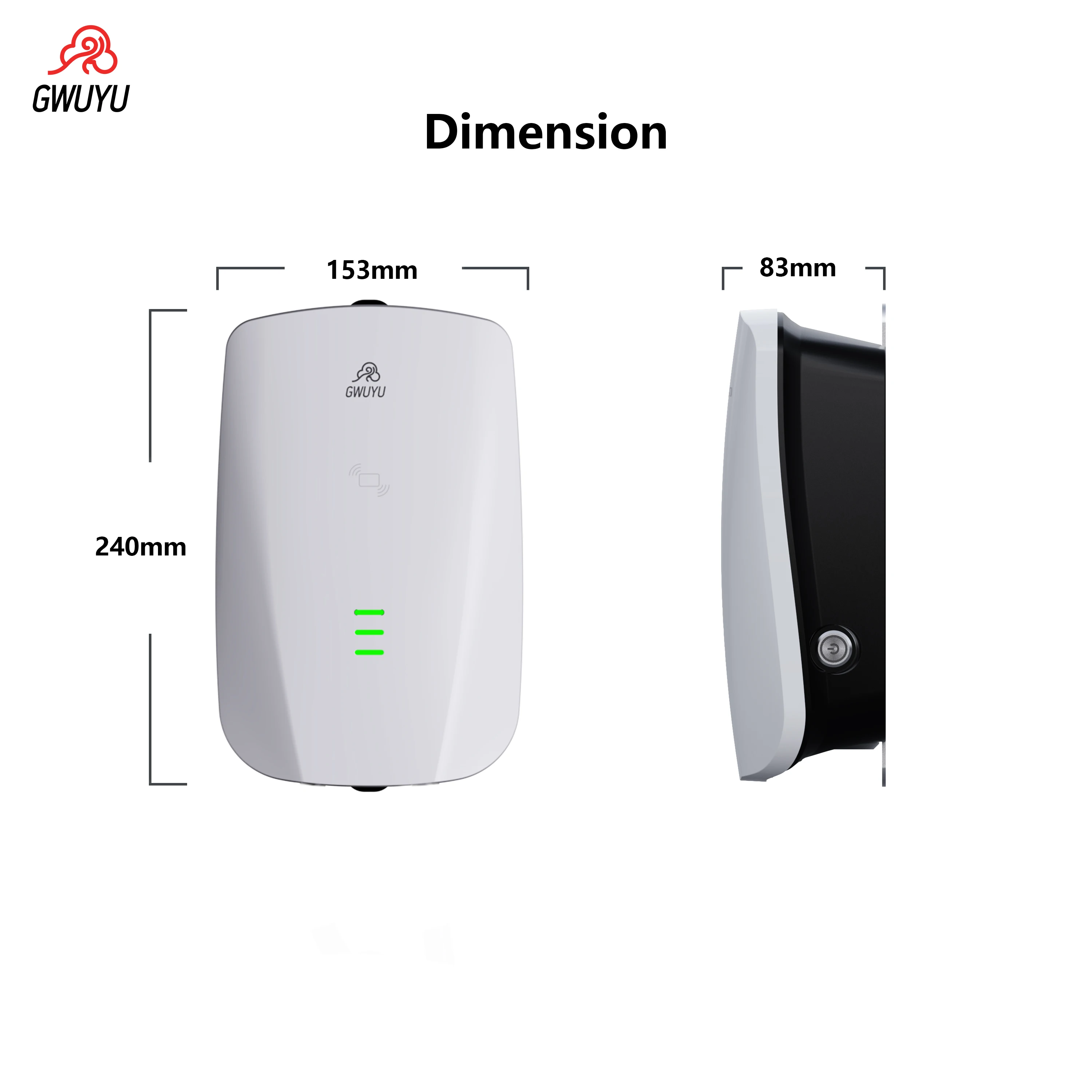

Control Box Size:IP65 Waterproof and Heat Resistant:

The connectors on both ends of the cable has achieved the effect of heat and drop resistance. High-quality cable provides good electrical conductivity and faster transmission speed,avoiding safety risk. The protection class IP55 protects against dust, rain and wind, thus guarantees safe long-term outdoor charging.

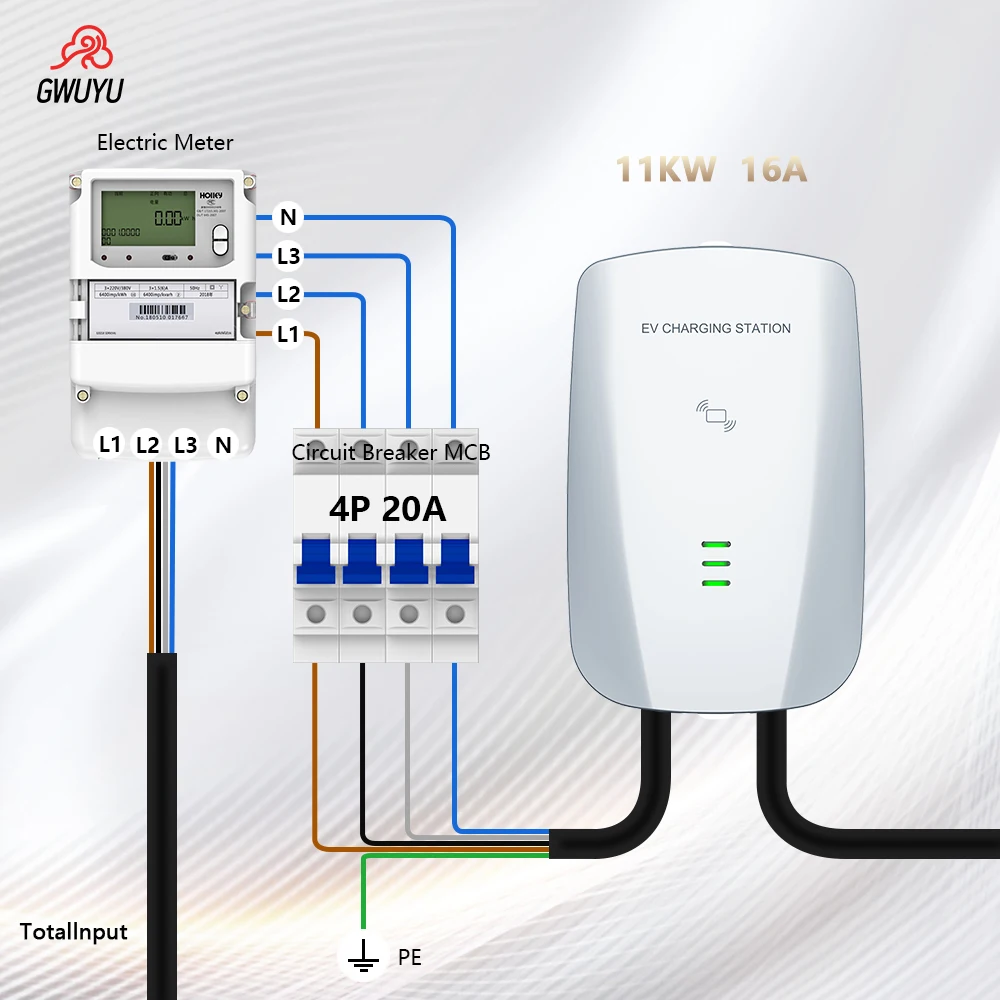

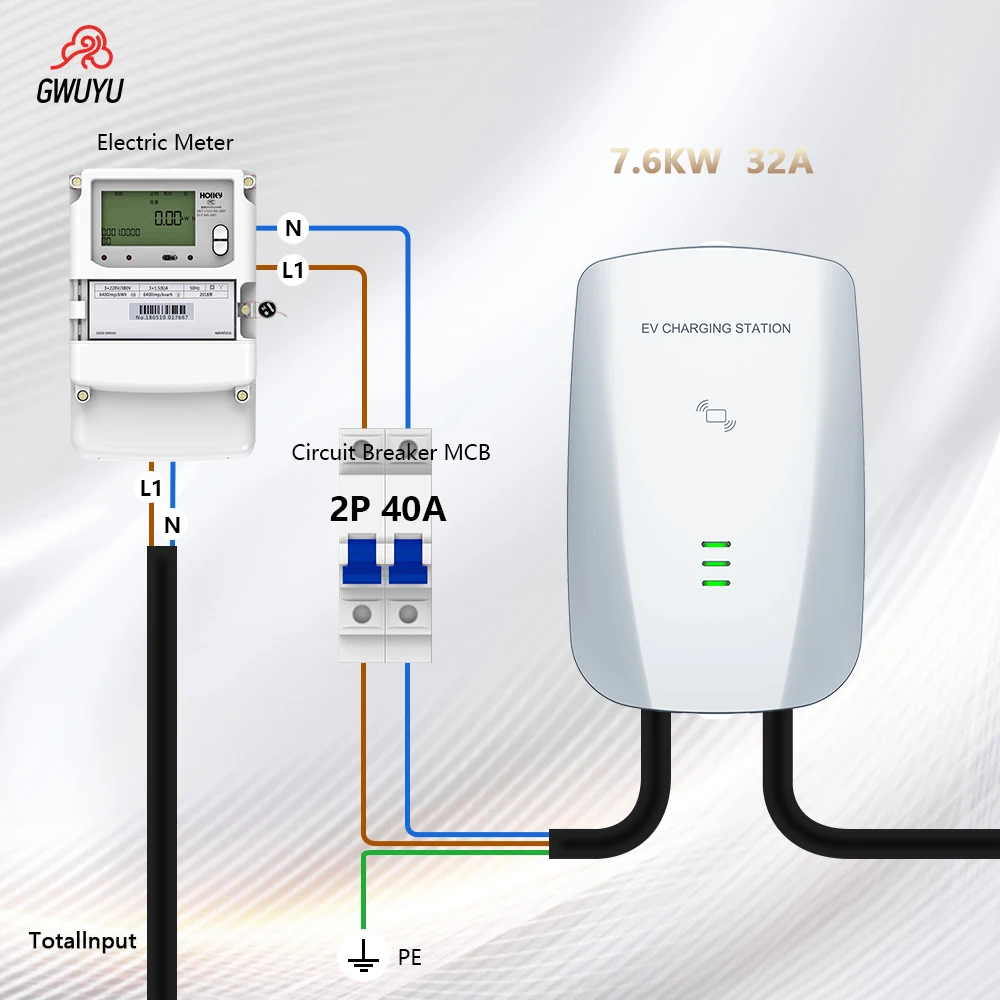

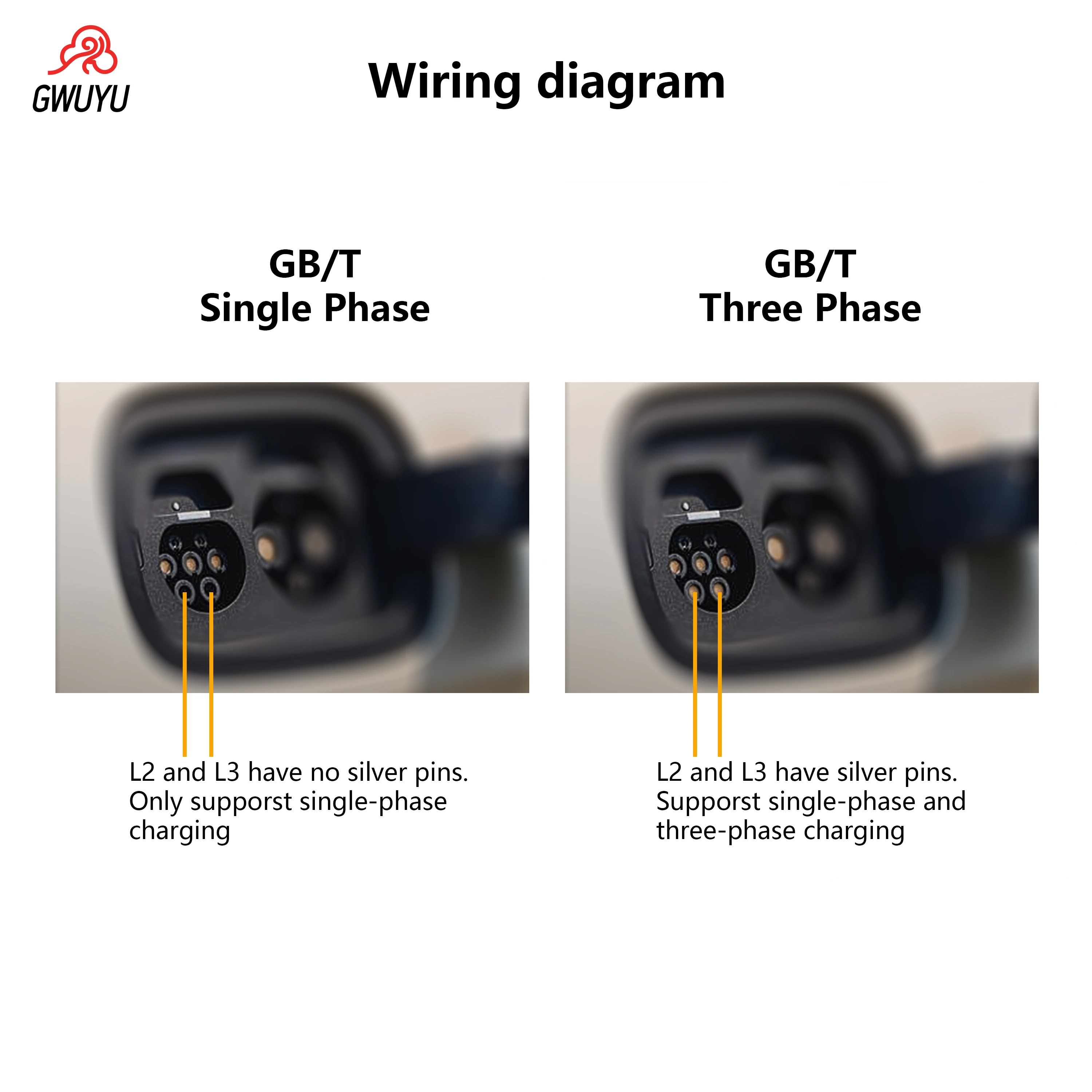

Wiring Diagram:

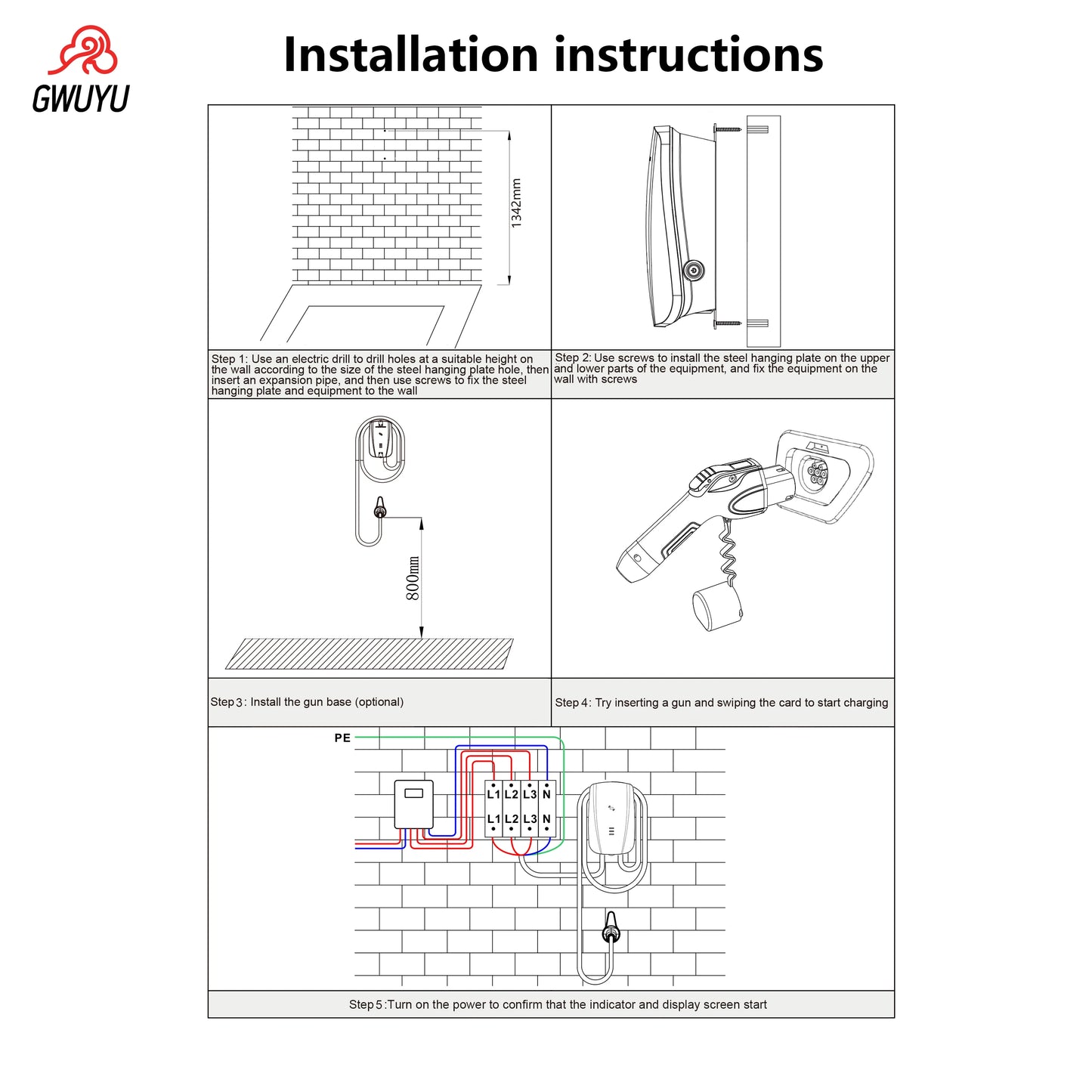

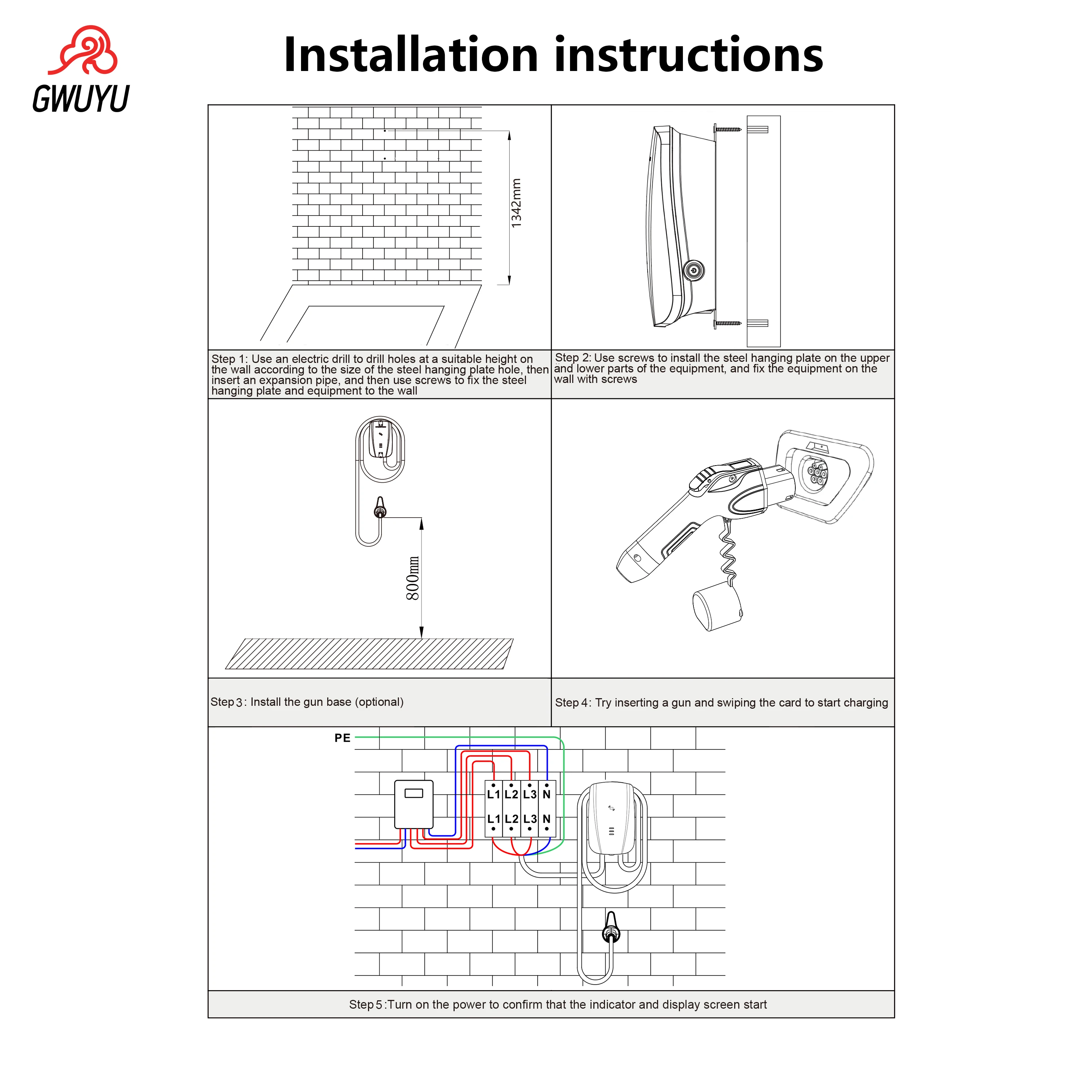

Installation Instructions:

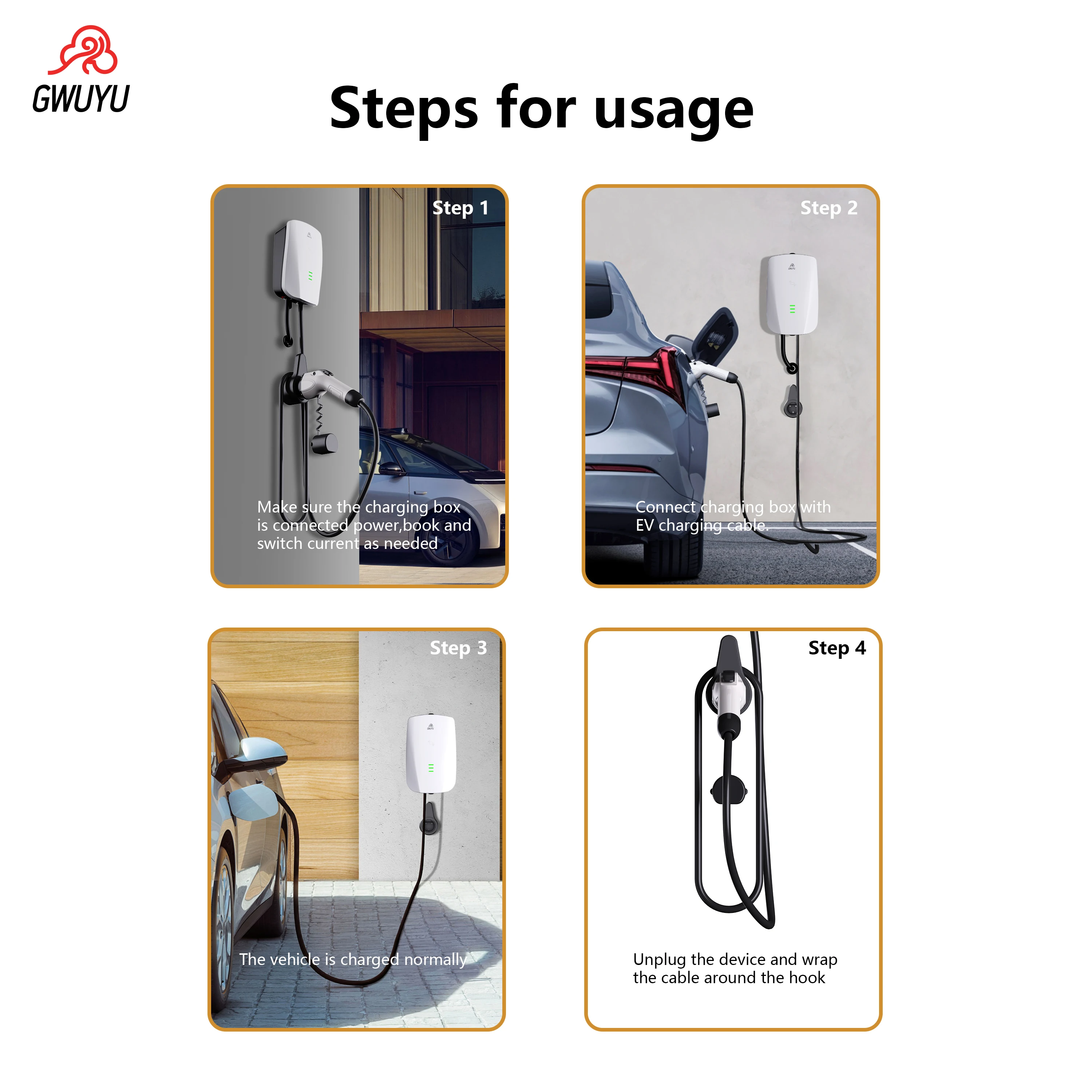

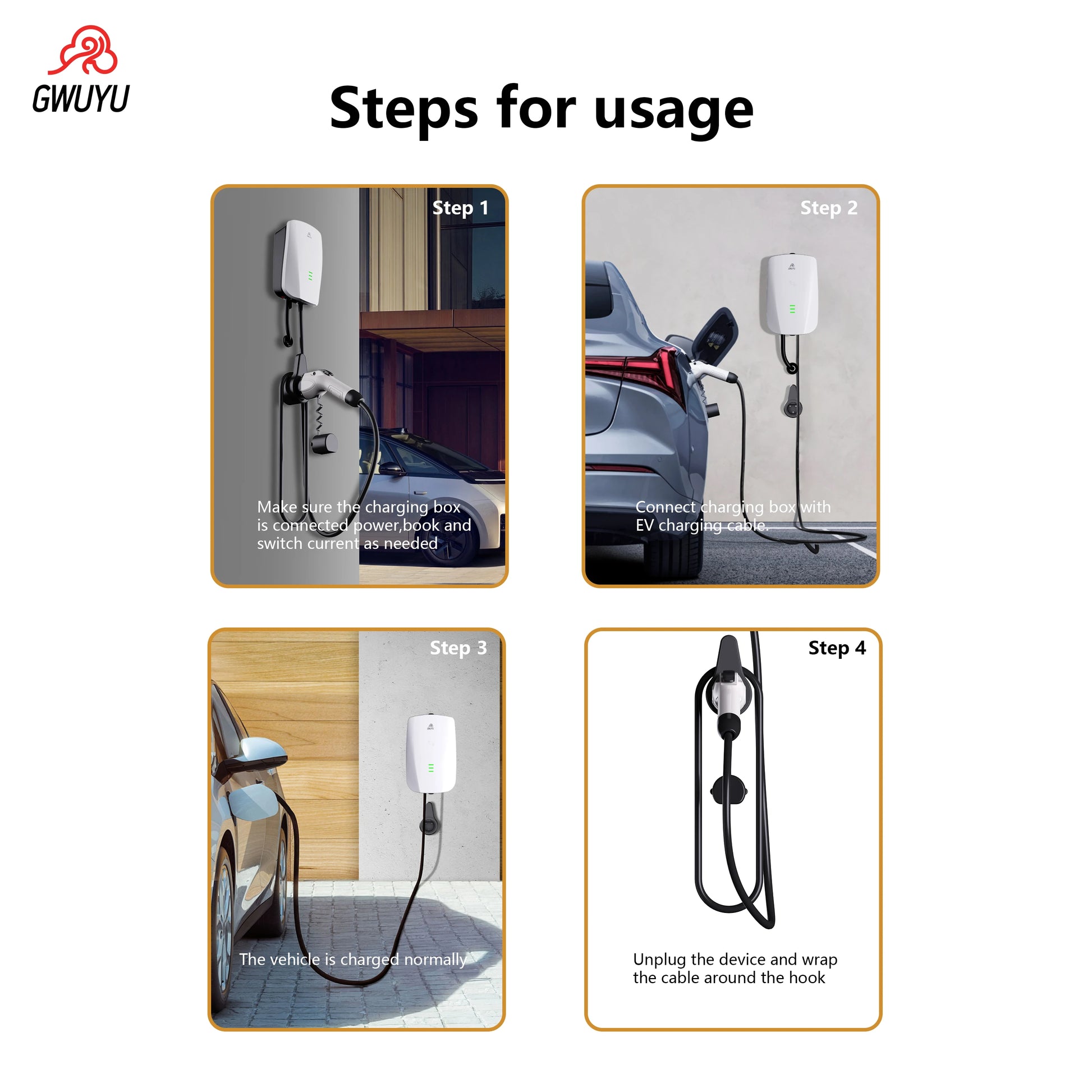

Steps for Usage:

Packing List:

1 * EV charging station

1 * holder(gift)

1 * Manual
