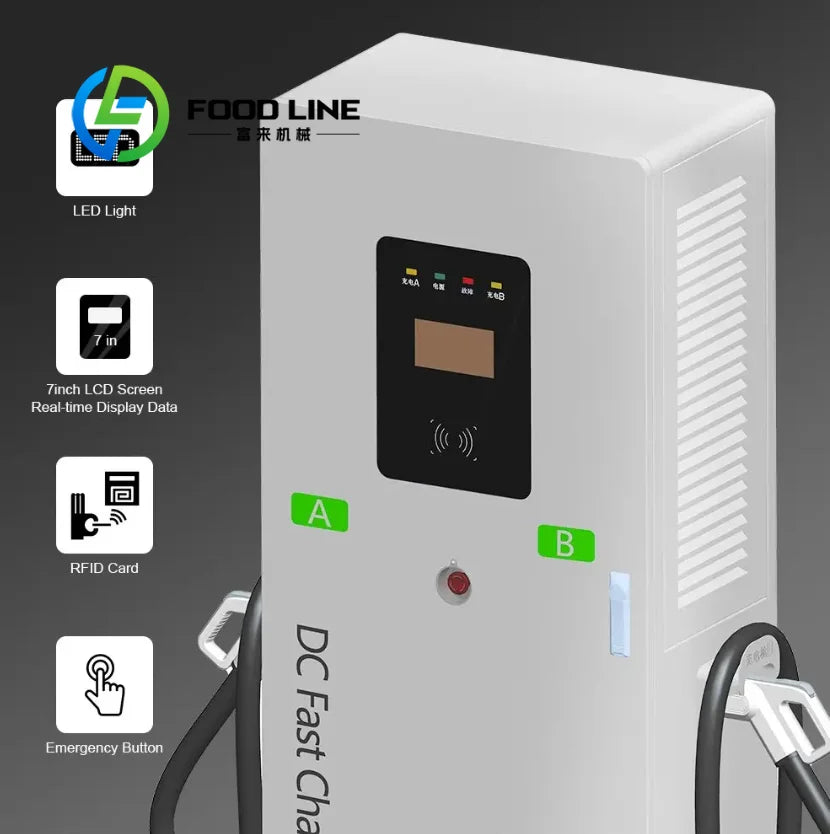

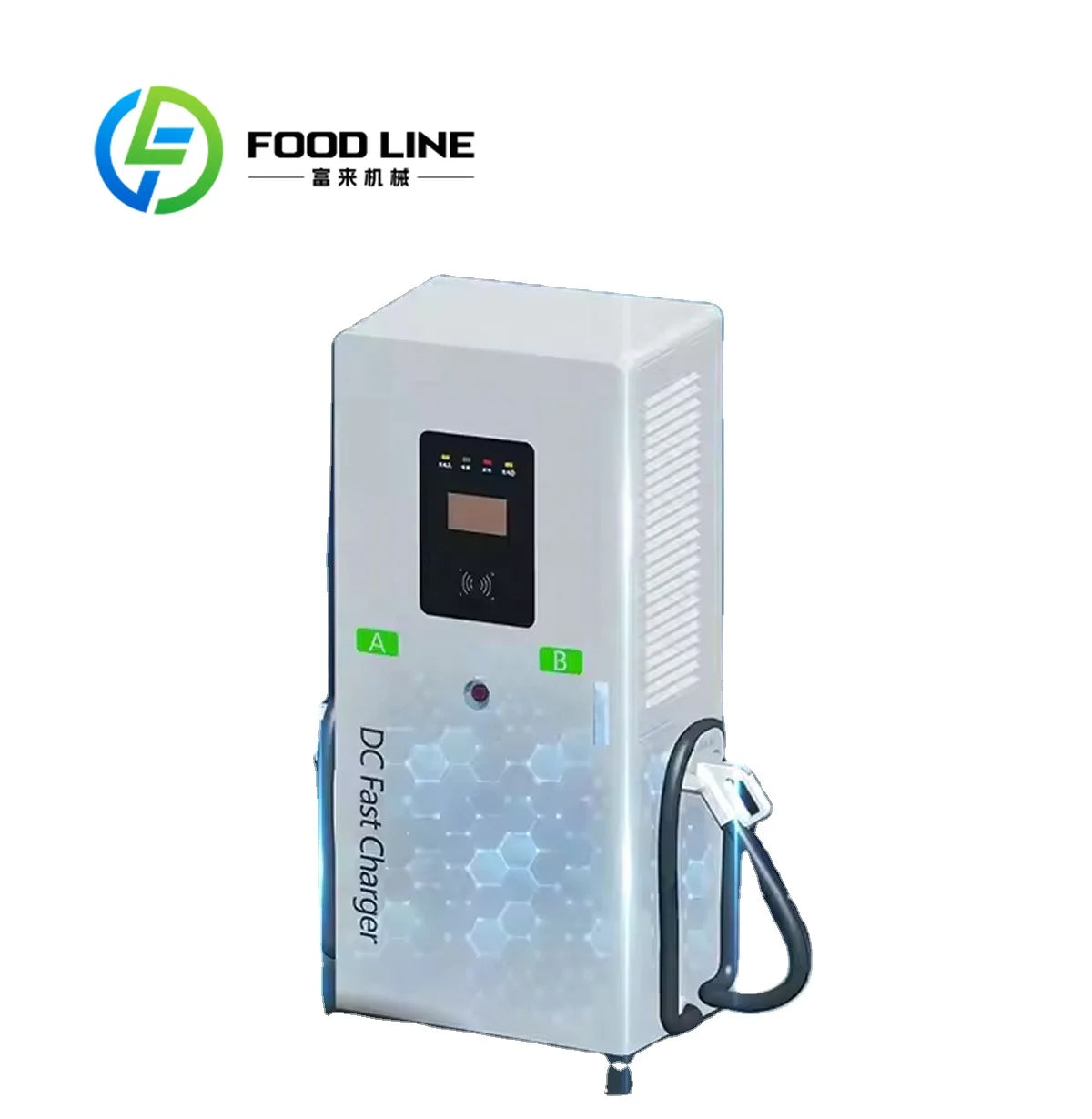

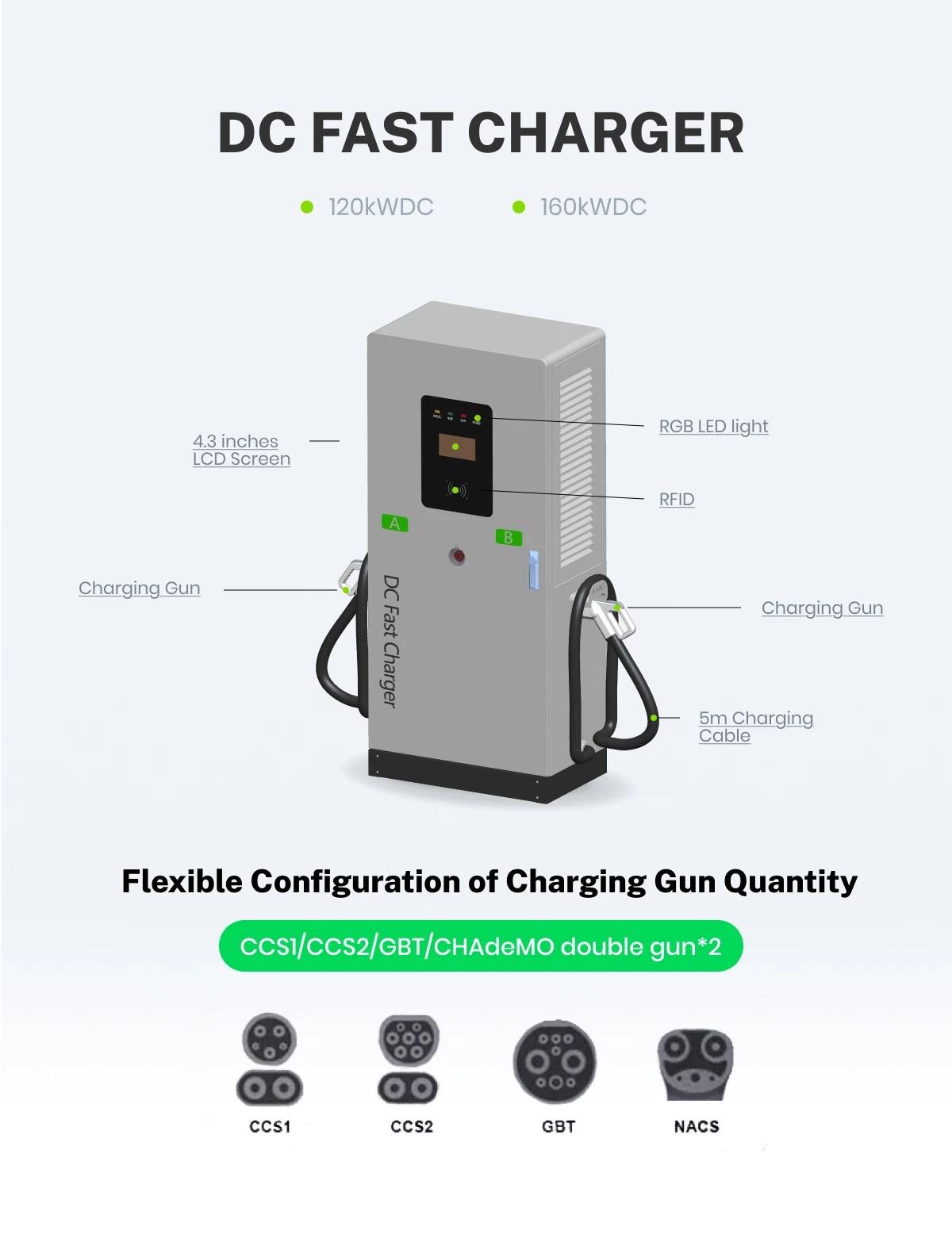

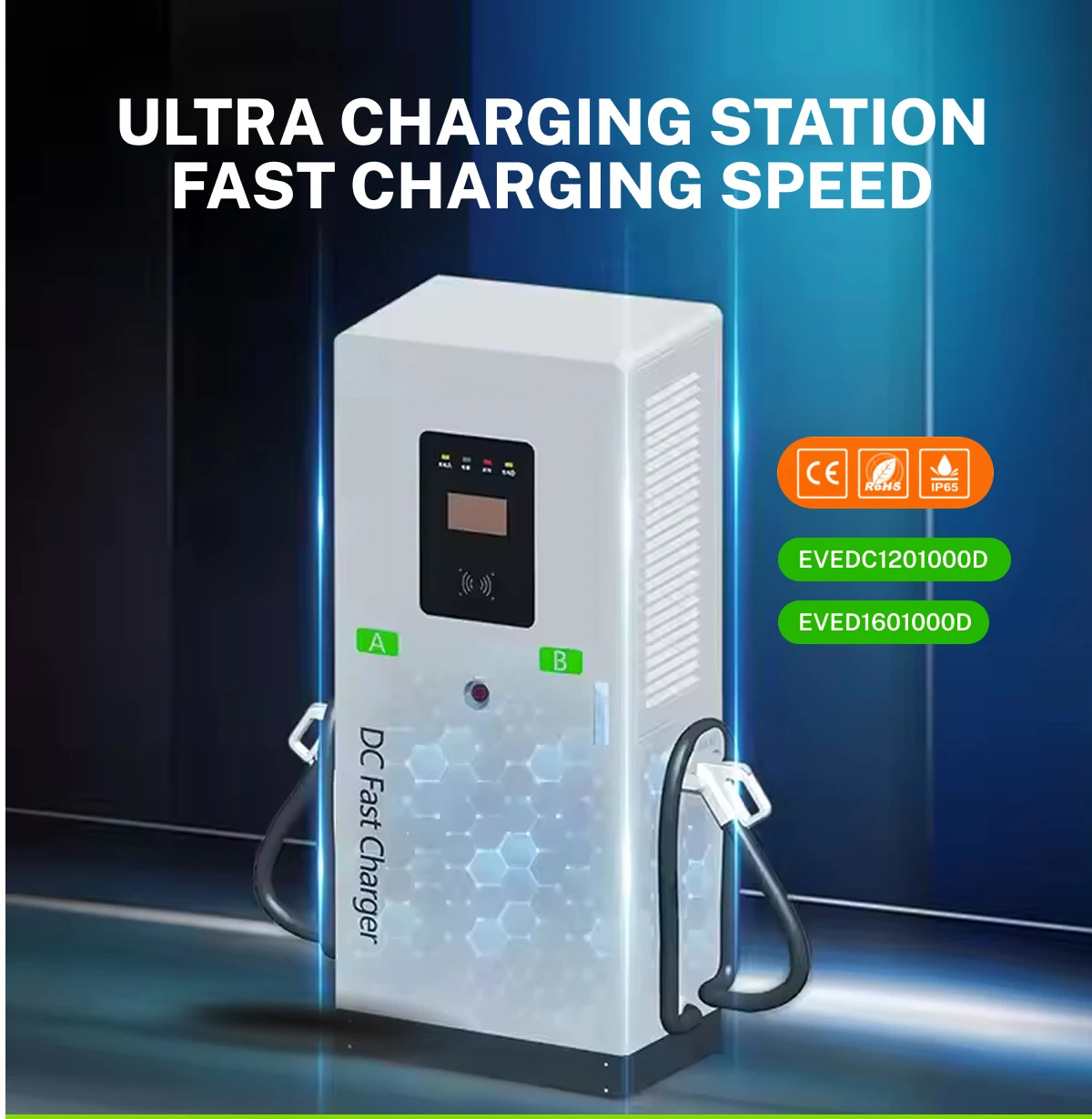

Floorstand EV Charger Power 0~250A Electric Vehicle Commercial DC Charging Station With 4.3 Inches Lcd Display



SMART COMPATIBILITY FOR CONVENIENT OPERATION

Supports the OCPP protocol for easy smart backend management. Users can easily check charging status, make payments, and perform fault detection through the app, ensuring convenience.

Model			EVEDC1201000D	EVED1601000D
Specification Parameter
Input	Power Supply	3P+PE(Delta)
		Power plug	Hard-wired
		Input Voltage	400V±15% （480V±15% for US market）
		Frequency	50/60HZ
Output	Output Voltage	200~1000V	200~1000V
		MAX Output Current	250A
		MAX Output Power	120kW	160kW
Electrical parameter	Efficiency	≥95%
		Power Factor	≥0.99@50%~100%loading
		THD	≤5% @ 100% loading
		Ripple Factor	≤±1%
Product Features	Charger connector 充电枪	CCS1/CCS2/GBT/CHAdeMO double gun
		LED Indicator	RGB LED

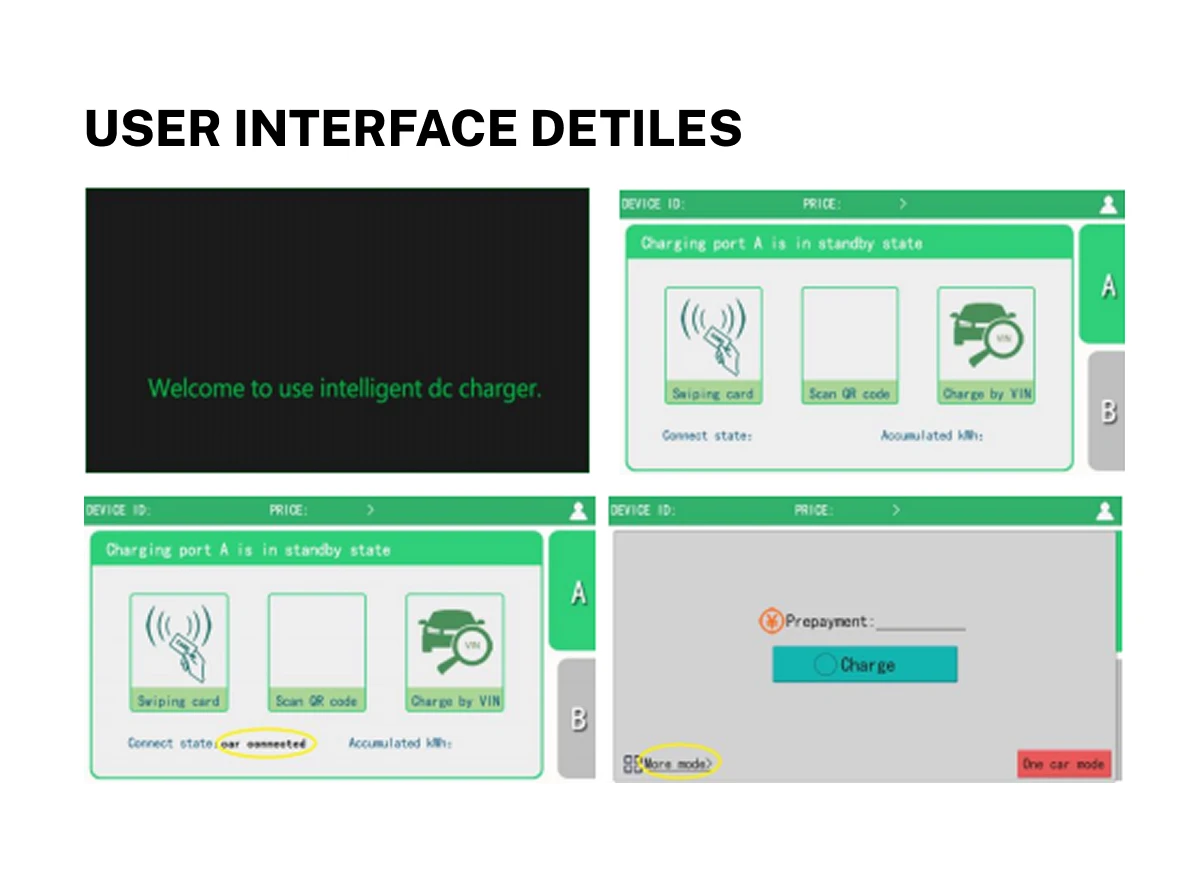

		Display	7inch LCD
		Cable Length	5M（accept customize）
		E-stop Button	Yes

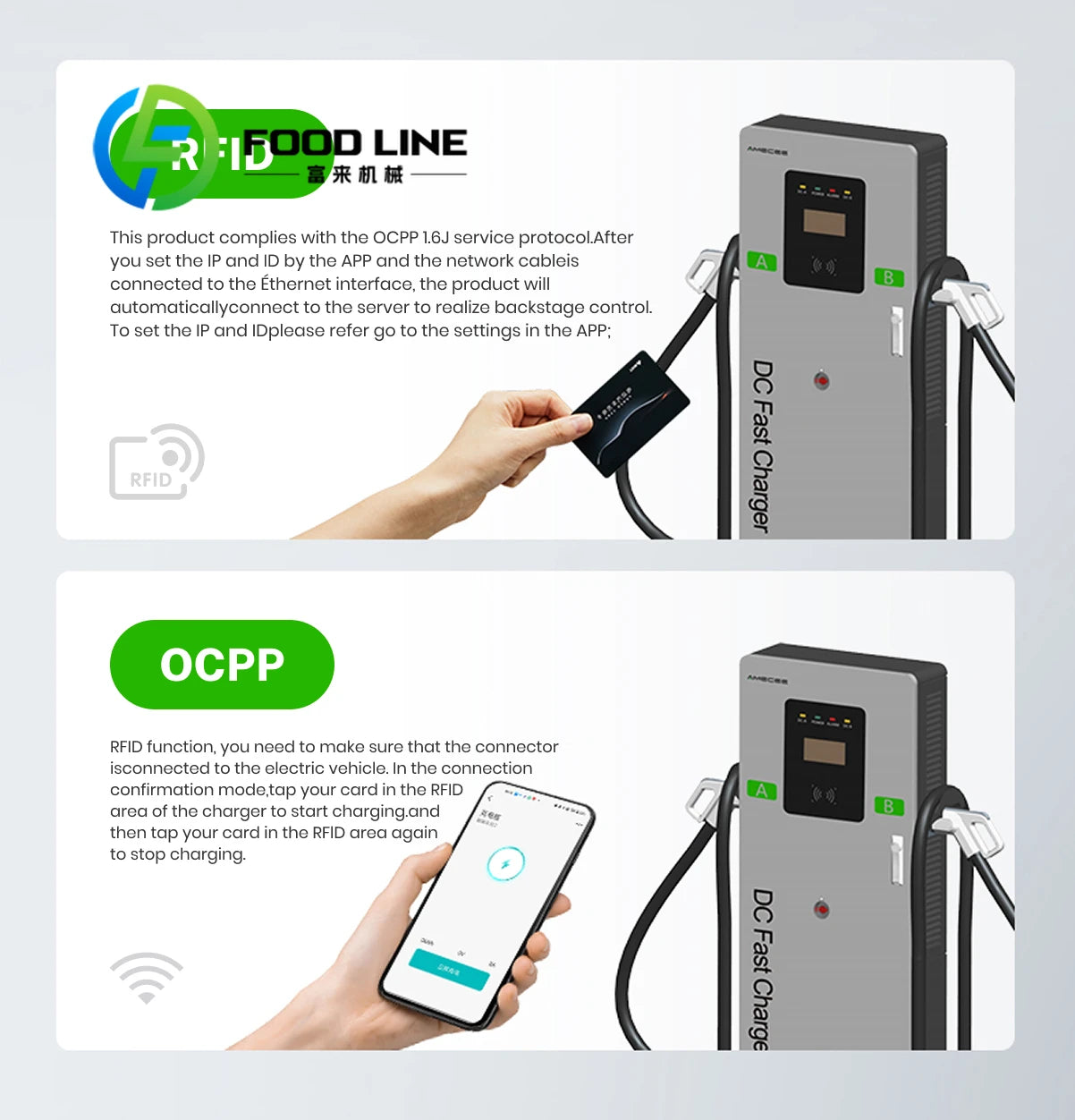

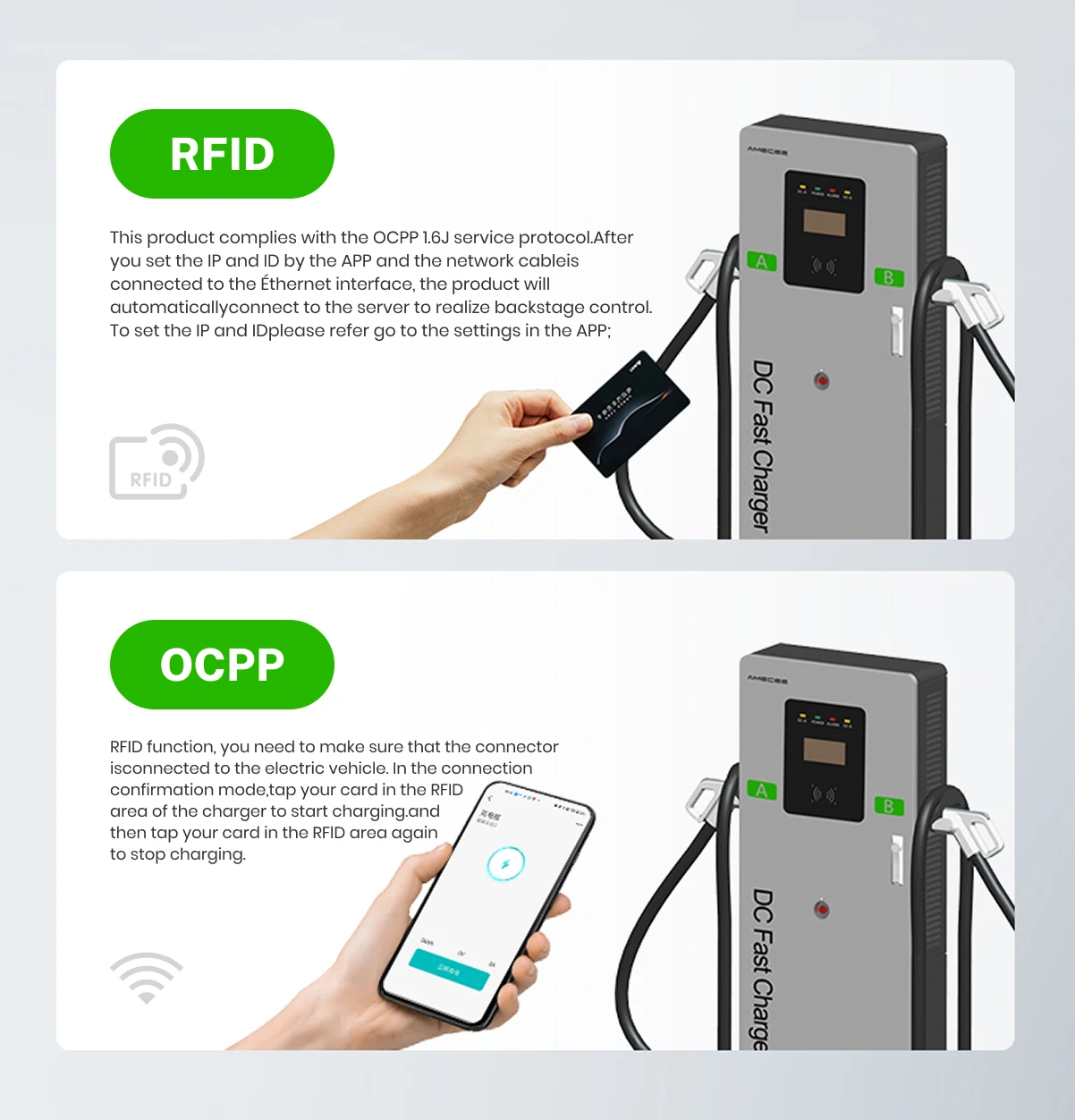

		Start Mode	VIN Plug&Play/APP/RFID/OCPP
		OCPP	OCPP 1.6J
		RFID	Mifare ISO/IEC14443A (Optional)
		Communication	WIFI/4G/RJ45
		Installation Method	Wall-Mount
Material	Housing Material	Galvanized steel
		Cable Material	TPU
safety	Energy Meter	Smart Meter（MID certificate ）
		RCD	Type A+B AC30mA+DC6mA

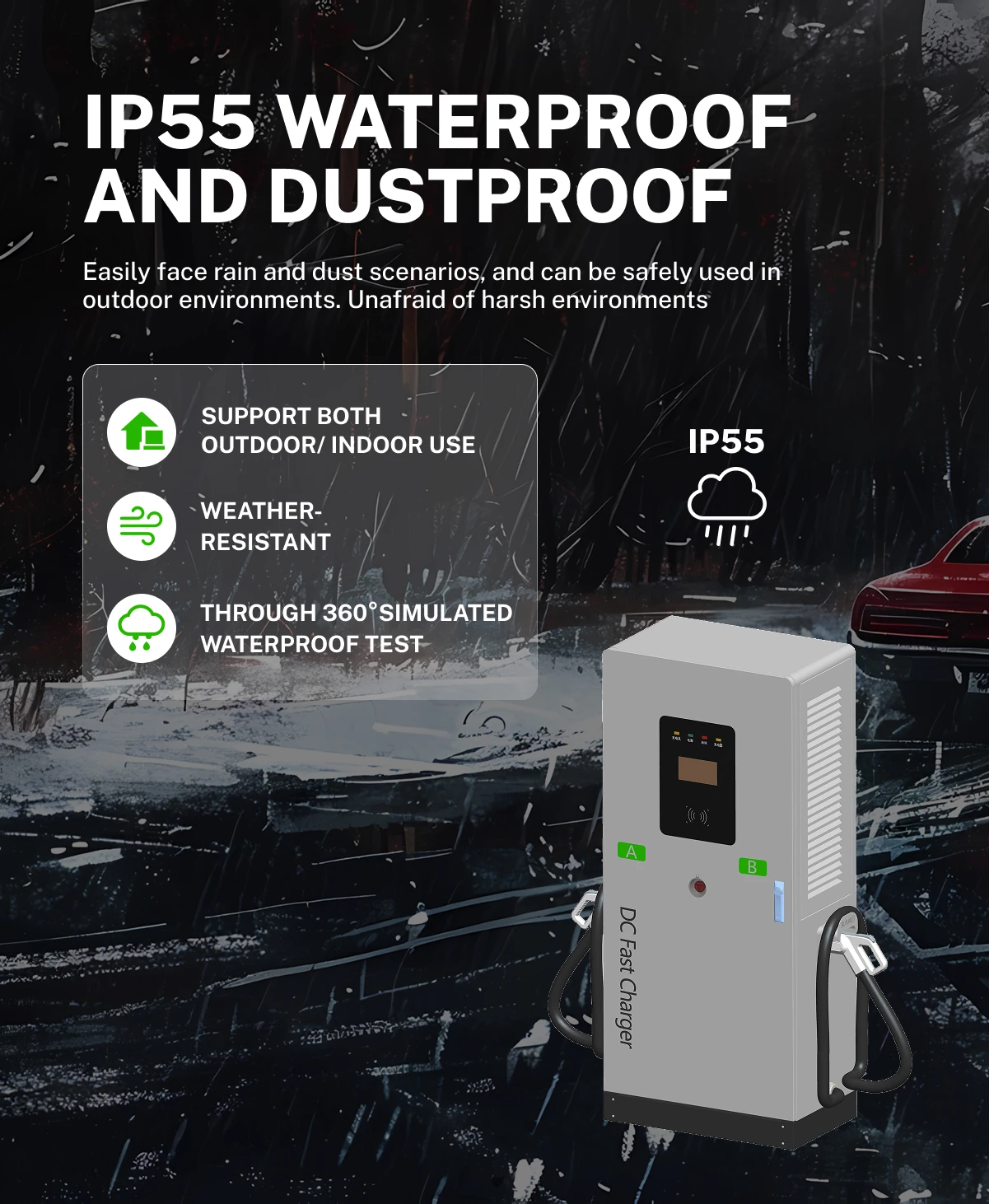

		Protection Class	IP55
		Impact Protection	IK10
		Electrical Protection	Over current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over/Under temperature protection
		Standby power	<8W
		Standard	EN/IEC 61851-1: 2019 EN/IEC 61851-23: 2014 EN/IEC 61851-24: 2014 EN/IEC 62196-3: 2022 / CHAdeMO: 3.3 / SAE J1772 Combo (CCS1) ISO 15118-1: 2019 / ISO 15118-2: 2022 UL 2202: 2020 / EN/IEC 60950 EN/IEC 61000 / FCC Part 15
		Warranty	2 Years
		Certification	TUV CE, RoHS, ETL
Environment	Cooling	Fun cooling
		Noise	≤60dB
		Work Temperature	-25℃~+60℃
		Work Humidity	5%~95%
		Work Altitude	<2000M

Q:Can home chargers be customized to specific requirements?

A:Absolutely.Our home chargers are highly customizable tomeet your specific needs. whether it's power output, unique connector types,or compatibility with solar systems. our R&Dteam works closely with customers to deliver the most tailored and effective charging solutions.

Q:What advantages do your chargers offer interms of performance?

A:Our chargers are built using advanced R&D technology andundergo regular compatibility testing in various countries toensure seamless integration with different voltage systems and vehicle interfaces. We provide multiple power options,from standard to fast charging, and all our products are rigorously tested to meet international safety and performance standards.

Q:What after-sales services do you offer?

A:We take pride in offering comprehensive after-sales services.including detailed product manuals,24/7 technical support, and quaranteed spare parts availability, Our chargers come with a 2-year warranty, and our dedicated online customer service team is always ready to assist you.Furthermore, we are actively establishing operational and maintenance centers across various countries to ensure that our support services always stay ahead of customer needs.

Q:Are your chargers compatible with all electric vehicles?

A:Yes,our chargers are designed to support all major EV interfaces,making them compatible with the vast maiority of electric vehicles on the market. For specific brands, such as Tesla's NACS interface, we have already developed seamless solutions to ensure full compatibility.

Q:How do you ensure the quality and reliability of your chargers?

A:Every charger undergoes a strict quality control process, from initial desian to final production, Backed by our in-house R&D team and advanced manufacturing facilities, our aging tests and inspection procedures are among the most rigorous in the industry,This ensures that every oroduct meets the highest standards of safety,reliability,and performance.

Q:Can l monitor and control the charger remotely?

A:Yes,our charaers feature user-friendly interfaces and are equipped with mobile app compatibility, allowing you to remotely monitor charaing status,set schedules.and track energy usage,These smart features can also be customized to suit your specific preferences. Additionally, our chargers are fully compatible with OCPP 1.6J protocols and can seamlessly integrate with CSMS platforms,enabling customers to monitor and manage the status of every charger in real-time.
